Spec Sheet

Built for the garage.
Every inch of it.

Every part of a Klovo cabinet — what it's made of, how it holds, and why it lasts. One page. No marketing fluff.

500
lb / cabinet
99
lb / drawer
3 min
assembly per box
100%
made in USA
Anatomy

Reference: DB324 · 24 in. Drawer Base

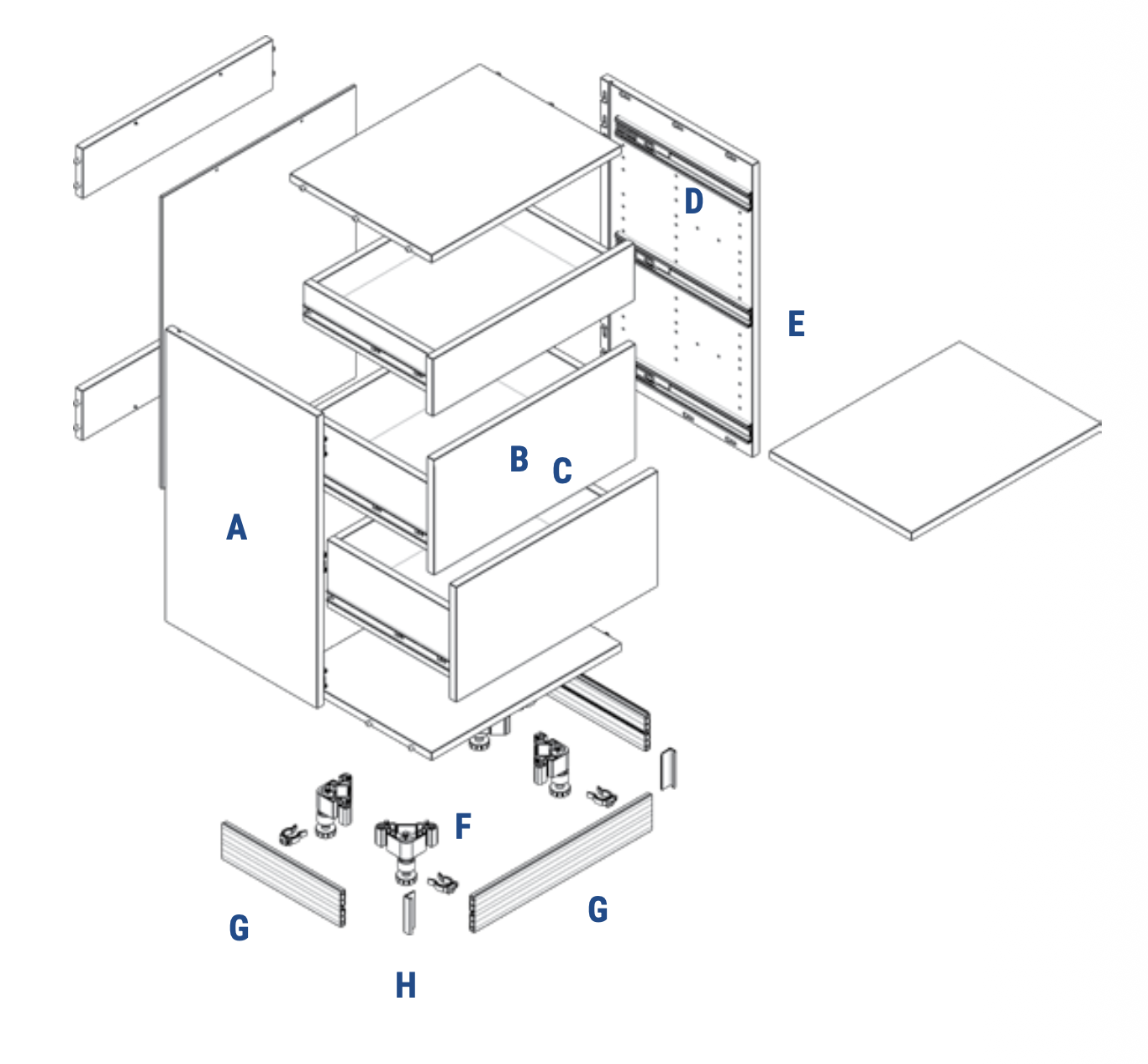

Exploded view of a Klovo drawer base cabinet with parts labeled A through H
Construction
A
Construction
Panels
5/8 in. moisture-resistant, scratch-resistant engineered wood panels, edged with 1 mm PVC.
B
Construction
Shelves, Doors & Drawer Fronts
Flat panel, 3/4 in. engineered wood, edged with 1 mm PVC.
C
Construction
Interchangeability
Our doors and drawer kits (3, 4 or 5) can be swapped while keeping the same box. Applicable to 24 in. wide Base/Tall SKUs.
Hardware & Drawer
D
Hardware & Drawer
Drawer Glides
Push-to-open ball-bearing drawer glides (no hardware needed).
E
Hardware & Drawer
Hinges
Soft-close hinges, push-to-open hardware also provided for doors.
Support & Stability
F
Support & Stability
Folding Plastic Leg
Waterproof plastic leg levelers 3.5 in. H to 6 in. H adjustment range.
G
Support & Stability
Waterproof Toe Kick
Clip-on system with extruded aluminum finish and made of polypropylene and a rubber gasket, 4 in. high.
H
Support & Stability
90-Degree Connector Fitting & End Cap
4 in. H matching aluminum foil finish.
Interchangeability

Same box.
Different insides.

Every 24 in. Base or Tall SKU accepts an open shelf, a full-height door, or a 3, 4, or 5-drawer kit. Change the setup without changing the cabinet.

Applies to 24 in. Base / Tall
B24-OS
Open + shelf
B24
Door
DB324
3 drawers
DB424
4 drawers
DB524
5 drawers
Materials
Component Material Thickness Edge
Panels (sides, bottom, top)Moisture-resistant engineered wood5/8 in.1 mm PVC
ShelvesEngineered wood3/4 in.1 mm PVC
DoorsFlat-panel engineered wood3/4 in.1 mm PVC
Drawer frontsFlat-panel engineered wood3/4 in.1 mm PVC
Toe kickPolypropylene + rubber gasket4 in. HAluminum foil finish
Leg levelerWaterproof plastic3.5–6 in.—
End cap / 90° fitPolypropylene + aluminum finish—Matching foil
Finish
Perfect White
Slab doors & drawers, engineered-wood core, ships flat with all hardware.
Hardware

Named brands.
Industry-standard ratings.

Klovo uses the same hardware brands found in premium kitchen cabinetry, not generic OEM components. Hinges and slides each carry their manufacturer's limited lifetime warranty, separate from the 1-year cabinet warranty.

Component Brand Spec Warranty
Door hinges Blum Soft-close, 200,000-cycle rated Limited lifetime
Drawer slides DTC SUPER-RAIL Full-extension side-mount ball-bearing, soft-close, push-to-open, 99 lb rated Limited lifetime
Connector system GlideLock Patent-pending, tool-free engagement, weight-bearing 1 year (cabinet)
Push-to-open mechanism Blum / DTC Magnetic catch on doors and drawers — no handles required With component
Leg levelers Klovo / Door Kraft Adjustable 3.5–6 in., waterproof plastic 1 year (cabinet)
Origin · Warranty

100% Made in USA.
Built to last.

20+
yrs by Door Kraft
100%
Made in USA
1 yr
limited warranty
